Break My New Library

I know that the updates here have been extremely sparse. For that I do apologize. Things are slowly starting to settle into a new normal around here, and I've been able to regain the ability to put time back into work. There's a large to do list on my whiteboard, and many of the things on that list depend on improvements and bug fixes to the Si5351 Arduino library. So that has been my first priority as I dip my toes back in the water.

There were quite a few features of the Si5351 that the older versions of the library did not support, such as all of the 8 outputs of the variants excluding the A3 and the VCXO of the B variant. Also, there is a pretty big bug in how the tuning algorithm handles multiple outputs assigned to the same PLL, which causes tuning errors to crop up.

Therefore, I decided in one fell swoop that I needed to totally rewrite the tuning algorithm and add support for as many of the neglected features as I could before moving on to other projects involving the Si5351. Over the last month, I've been hacking away on the code in my spare time, and I'm glad to finally be able to announce that a beta version of the Si5351 Arduino v2.0.0 library is ready for public use.

Because it's such a drastic change to the underlying code, I'd like to have it in limited beta release before doing a final release via the Arduino Library Manager. So that means that if you would like to try it (and I encourage you to do so), then you'll need to install it manually, which isn't terribly difficult.

Go here and click on the green button on the upper right that says "Clone or download". Select "Download ZIP". Next, find where on your filesystem your Arduino libraries folder resides and delete the existing "Etherkit Si5351" folder. Inside the ZIP file you just downloaded, there is a folder entitled "Si5351Arduino-libupdate". Unzip this folder into the Arduino libraries folder, and then restart the Arduino IDE.

Since this is a new major version release, I took the opportunity to tweak the interface a bit, which means that you'll have to adjust your current code to work with the new library (but fortunately not too much). You'll find the details on how to do that here.

Please check out the updated documentation on the GitHub page, as it has been greatly expanded and should explain all of the new features in detail. Also, quite a few new example sketches have been added to the library, which you can find in the usual place in the Arduino IDE. I encourage you to try the new library in your existing projects, as it should be a bit more streamlined and stable. Also, there is plenty of opportunity to make new projects with the B and C variant ICs. If you do encounter any problems with the new library version, I would like to strongly encourage you to use the Issues feature of GitHub to let me know so that I can get on to fixing it as soon as possible. When I'm satisfied that there are no big show-stopper bugs in the code, I'll merge it to the master branch of the repository and tag it for release via the Arduino Library Manager, but I need help in testing it before I can do that.

Once there's a stable release of this version of the library out in the wild, then I'll be able to move forward with other projects based on this Si5351. With any luck, some more interesting things will be coming from this shack again in the near future. Thank you for all of your help and support!

Edit: an exclusive look into the development process:

Linux Mint 18 Has Arrived

Those of you who have followed my blog for a while may be aware that our household has relied upon Linux for years. Earlier on, it was Ubuntu, and then later I migrated to Linux Mint shortly after the Unity environment was released for Ubuntu. I do have a dedicated Windows box for use in my Etherkit shipping station and I have dual-boot Win 10 on my notebook, but I only use Windows when forced. Otherwise, I much prefer Linux Mint, even on my ham shack PC.

Today is an exciting day for us Linux Mint fans, as the newest long-term support release, version 18 (code name "Sarah") has been officially released! Mint is derived from an Ubuntu LTS release, and the version 17 family was based on Ubuntu 14.04, which dates from 2014. Linux Mint 18 descends from Ubuntu 16.06, so there will be updates to the core software compared to version 17. (You can manually update most of these packages in an older release, but there's always a risk of corrupting your installation, so it's usually not worth it if you value stability).

Speaking of corrupting your system, I recently tried to update the kernel on my ham shack PC running Linux Mint 17.3 and messed up the system so bad it wouldn't even boot. Rather than try to spend the time doing a recovery, I decided to install the Linux Mint 18 beta last week and give it a spin. My initial impressions from working with it over the last week are very positive. The shack PC is very modest, using a cheap AMD Athlon 5350 APU (I guess that's their name for their integrated CPU/GPU/SoC) with integrated Radeon graphics. Under Mint 17.3, the Radeon graphic support was kind of terrible. The proprietary fglrx driver kind of worked but was glitchy as hell and the open-source driver had absolutely terrible performance. Under Mint 18 with the newer AMD open source graphics drivers, the machine performs as expected, which is a relief. The Mint-Y theme looks fantastic, and I think I much prefer it over the default Mint-X.

Linux has truly come a long way on the desktop. If you are a Windows user who has dabbled in Linux previously but found it a pain to get working, you should try Linux Mint 18 on live OS installation to see how far it has come. Much more "plug-and-play" than just a few years ago. Grab that ISO torrent, image it to a USB drive, and give it a whirl!

Wideband Transmission #9

Arduino in the Cloud

Selection_108

I saw a recent post on the Make blog about the new cloud ecosystem for Arduino which has been dubbed Arduino Create. Since this will most likely be the future of Arduino, it seemed wise to get an early look at the platform. It includes quite a few features, but the most notable ones in my opinion are the Project Hub, Arduino Cloud (IoT infrastructure), and Web Editor. Arduino Cloud will allow you to connect your network-capable Arduino to the Internet to allow sharing of sensor data, remote control over the net; your typical IoT applications. The Web Editor gives you access to an Arduino IDE over the web. Your code is stored online, and a cloud compiler builds your project, so you don't have to worry about configuring that on your machine. However, you still have to install an OS-specific agent program on your PC in order to get the complied firmware from the Web Editor onto the Arduino's flash memory. The Project Hub is a project-sharing space, similar to hackaday.io, Instructables, etc.

Selection_110

I don't have much to comment on regarding Arduino Cloud, since I don't have any of the supported devices and cannot try it out at this time. The Web Editor gives me mixed feelings for sure. No doubt that this was created to compete with the mbed platform, which sounds awfully convenient from what I have seen. I like the idea of being able to easily save and share code with others, as well as having a standard set of build tools for everyone. However, the environment is obviously still in early stages, as there is no support for libraries to be added through the official Library Manager JSON list, nor for external hardware definition files to be used. I had some difficulties getting the Arudino Create Agent talking to my web browser in Linux Mint, and once I did, uploading seemed a bit flakier than it does on the desktop IDE. Of course, this is all still in beta, so rough edges are to be expected. Once they get the features of the Web Editor up to parity with the desktop IDE, it should be a very useful tool. Finally, the Project Hub looks nice, but I wonder if we aren't starting to see too much fragmentation in this type of service for it to be useful. Still, the one-stop shopping aspect of it all is very spiffy.

Something to Watch

Selection_109

Ham radio seems like a natural fit with the citizen scientist movement, so it pleases me to have discovered that some hams have created a platform to advance citizen science in an area where we are well equipped to do so. The new HamSCI website states its mission as:

HamSCI, the Ham Radio Science Citizen Investigation, is a platform for the publicity and promotion of projects that are consistent with the following objectives:

  • Advance scientific research and understanding through amateur radio activities.
  • Encourage the development of new technologies to support this research.
  • Provide educational opportunities for the amateur community and the general public.

HamSCI serves as a means for fostering collaborations between professional researchers and amateur radio operators. It assists in developing and maintaining standards and agreements between all people and organizations involved. HamSCI is not an operations or funding program, nor is it a supervisory organization. HamSCI does not perform research on its own. Rather, it supports other research programs, such as those funded by organizatons[sic] like the United States National Science Foundation.

They already have three listed projects that they are helping with: the 2017 Total Solar Eclipse, ePOP CASSIOPE Experiment, and Ionospheric Response to Solar Flares. The 2017 eclipse is of special interest to me, as totality will be seen at latitude 45°N here in Oregon, which puts it squarely over Salem; a place I will have easy access from which to observe (which also reminds me that I need to build some kind of solar observation device like the Sun Gun before August 2017).

I wish these folks the best and I hope they are able to make a useful contribution to science.

A Challenger Appears

A EEVBlog video popped into my YouTube feed yesterday that was of significant interest to me, and will probably be to you as well. Most of us who are into having a home test & measurement lab are well aware that the Rigol DSA-815 has been the king of spectrum analyzers for the last few years, due to the very reasonable cost paired with the decent amount of bandwidth and load of useful features that are included. Rigol seemed to own this market space since the DSA-815 was released, as the big boys of T&M didn't seem to care too much about serving us little guys with our small budgets. However, those days are probably at an end, as a new SA to rival the DSA-815 is on the cusp of release. Dave Jones gives a cursory review of the new Siglent SSA3021X, which looks like it will cost only a few hundred dollars more than the DSA-815 but may be significantly better in the performance category. I'd recommend watching the video below, but here's a summary of the points that interested me:

  • User interface seems to be heavily "inspired" by the Rigol DSA-815
  • The Siglent has significantly better DANL
  • 10 Hz RBW available on the Siglent vs 100 Hz on the Rigol (I've seen hints that the Rigol was supposed to have a 10 Hz RBW option, but they never released it)
  • Reference clock and PLL in the Siglent look better
  • The Siglent has a waterfall display available, which is missing from the Rigol
  • Dave spotted some potential unwanted spurious signals in the Siglent, but they were low level and his machine wasn't a release version either.

Also, don't miss Dave Jones in typical Dave Jones-style refer to a signal with unwanted sidebands as a "dick and balls".

My impression is that if Siglent can tighten up the fit and finish of this spectrum analyzer, it could give the DSA-815 a real run for its money. This is nothing but good news, as more competition in this space will mean even better products for us in the future. I'll be watching this one.

Fun with Marbles & Magnets

Finally as a palate cleanser, enjoy this clever kinetic artwork contraption built to play with marbles and magnets!



TDS1012 LED Backlight Retrofit

Back when I was working at Tektronix (wow, this summer it's been 10 years since I graduated with a AAS in EET and started at Tek), they had a one-time program where an employee could purchase a new TDS1000/2000 series oscilloscope for half of the list price. This was back in the day before the era of cheap and decent Chinese-manufactured scopes, so naturally I jumped on the deal. Even though I wanted more, I found that I could fit the TDS1012 into my budget (list price was a bit more than $1000 at that time).

The TDS1012 was a very faithful instrument on my bench for many years. I came to depend on it quite heavily. Too heavily, in fact, as I left it on a lot. Not thinking about the ramifications of it at the time. A few years ago, the backlight in the scope started fading, and not long after that, gave out completely. I figured I could just replace the display module, but finding a replacement turned out to be more difficult than I anticipated. Tektronix repair didn't stock it by the time that I inquired about it, and I could not find any through the back-channels that I checked with my Tektronix contacts. Even looking for NOS on eBay was fruitless (although later on, some grey market displays started turning up there for expensive list prices).

TDS1012-2

Eventually I gave up hope of realistically finding a replacement display and tried to sell the scope, although not very enthusiastically. The scope stayed in this state for quite a while, until I found something fortuitous. One of my favorite vlogs is The Signal Path, and Shahriar recently released a short video about repairing an VNA with a broken CCFL backlight with a LED replacement.

I'm not sure why it never occurred to me to try this, but I was grateful to have seen a path forward with the TDS1012. I didn't even know that there existed LED backlight upgrade kits, but I shouldn't have been surprised. Long story short, I ordered a handful of parts from eBay and took a chance, and was rewarded with a working display that was able to bring my beloved TDS1012 back from the dead! I'll give you some details below so that hopefully this can be of help to others in the future.

Bill of Materials

LED Backlight Upgrade Kit (there's a wide variety of these available on eBay)

s-l1600

XL6009 DC-DC Boost Converter

s-l1600 (1)

5 kΩ trimmer potentiometer
4.7 kΩ resistor, 0.25 W
Kapton tape
RTV silicone
Epoxy

The Details

The first thing to do was disassemble the TDS1012 so that I could get to the guts. Fortunately, I had done this in the past, so I knew exactly what to do. It's actually quite easy to do in the home lab with just two tools: a deep Torx T15 screwdriver and a small pair of hook-nosed tweezers. Pry off the knobs on the front panel by wedging the hook-nosed tweezers in the gap between the knob and panel, and then using them as a lever.

IMG_20160429_131507

Remove the back case from the instrument by unscrewing four T15 screws: one on the bottom-left, one on the bottom-right near the AC power connector, and two hidden under the fold-up handle.

IMG_20160429_131909

Next, the front panel can be removed by unscrewing five T15 screws: one on each corner and one hard-to-find screw that is between the CH1 and CH2 BNC connectors (on the back of the chassis). You can see side where those screws need to be removed from the chassis in the photo above.

IMG_20160429_132622

Once the front panel is off, you can now remove the display module. There are two cables to disconnect: the CCFL backlight cable going to the HV supply, which is on the top-left of the above photo, and the data cable which is on the right side (unseen in the above photo). Disconnect the CCFL cable and the data cable from the main board, and then remove the four T15 screws from the four corners.

IMG_20160429_132908

Now with the display module removed, you can see where the CCFL lives on the left side, under the beige plastic. I removed the Kapton tape securing the CCFL leads to the module, and then tried to pry the plastic apart at what looked to be interlocking snap tabs.

IMG_20160429_155106

IMG_20160429_155152

That turned out to be a bit of a mistake. The plastic was quite brittle and broke on the back side, including a few fragments from each end that snapped off completely. I think I should have removed that tiny screw that you can see on the center-left of the front of the display module before trying to take the CCFL out.

IMG_20160429_155409

There is some metallic foil that loops around the CCFL. I used a craft knife to slit it down the length of the display, freeing the CCFL from the module.

IMG_20160429_155551

You can see the burned-out CCFL in the photo above, removed from the display module. Now that the defective part was removed, it was time to figure out how to rig up the new LED backlight.

IMG_20160429_130610

Here you can see the LED module as packed by the seller. I was pleasantly surprised. Quite nice and secure.

IMG_20160429_130720

And here is the LED kit. This kit was made for a 15 inch monitor, so I would only need part of the LED strip. As was the case with other LED strips I've used, this module was wired so that groups of three LEDs were in series, with each of those groups in parallel with each other. I cut the LED strip at a multiple of three at a size that would fit where the CCFL used to live. Be very careful with this strip, as it is quite fragile and could easily break at the length it is shipped (which I'm sure it why the seller packaged it so well).

Next, I lashed up the LED driver module on the breadboard to see how it should be wired. As is common with these eBay modules, the documentation is pretty lacking, so I had to put in a bit of work to make sure I got the wiring right. There are four input pins on this module: VCC, GND, ENB (enable), and DM (dim). A bit of experimentation showed me that you needed to tie ENB to VCC and that DM could be fed using a simple voltage divider with a trimmer and fixed resistor to provide an adjustable voltage to DM that ranged from about 0.5 VCC to VCC.

IMG_20160505_121202 (2)

The product page recommends that the DC input be at least 10 VDC, and when driving it with >11 VDC the LEDs were quite bright. Any voltage below about 9 VDC, and the LED just won't light. In a lot of instruments, that may not be a big deal, but it was a problem with the TDS1012. It turns out there is no 12 VDC available, nor anything even close. The only other appropriate DC voltages available from the power supply are 6 VDC and 3.3 VDC. But the module just won't run on a voltage that low. I identified the IC on the LED driver module to be a DF6113. By the looks of the datasheet, it should be able to function as both a boost converter and constant current source for the LEDs, but this particular module will not run at 6 VDC.

A bit of half-hearted reverse-engineering showed me that while the DF6113 has the capability to function as a boost converter, that functionality was not being used here. In the reference design on the datasheet, it shows it being used as a boost converter with an LED output which is ground-referenced. However from what I could suss out of the eBay module, this one was configured to not be ground-referenced. Instead, the lower potential terminal of the LED driver was set at approximately 9 VDC lower than the input voltage, hence the reason why it would not function below 9 VDC input.

Rather than try to hack this module, I figured it would be easier to purchase a DC-DC boost converter module off of eBay from a US seller. After a few days, I had a XL6009-based module in hand, which looks to have a wide range of usable input and output voltages, and can easily source enough current to drive a small strip of LEDs. With the plan to drive the boost converter from the 6 VDC rail available from the TDS1012 power supply board, I set my bench supply to supply 6 VDC to the boost converter, set the boost converter to supply 12 VDC to the LED driver, and managed to get everything set up to light that LED strip from 6 VDC input. I just had to hope that the power supply had enough current margin for this LED strip, plus the losses in the boost converter and driver board.

IMG_20160503_165017

Now that the LED has been verified to work correctly, it was time to fit it into the display module in the place where the CCFL used to be. With the CCFL removed, you can peer down into the cavity it has left behind and see the glass panel that diffuses the backlight. The LED strip was placed facing into the edge of this glass so that the terminals came out of the top of the module (where the old CCFL wiring ran), and I used RTV silicone to secure it in place. I chose RTV silicone for two reasons: it would be easy to remove if I messed up the placement of the LEDs and it would be reasonably transparent if I got some adhesive in between the LEDs and the glass. It appears that was a good choice.

IMG_20160504_150428

Now I used epoxy (the cheap stuff from Harbor Freight) to seal up the plastic cover that I cracked earlier, mainly to provide mechanical stability and extra protection to the LED strip.

IMG_20160504_133547

Once that was dried, I lashed everything up to breadboarded driver circuitry to ensure that the backlight was actually do the job. As you can see above, it looked good so far!

IMG_20160504_134906

The real acid test for me was to see if the TDS1012 could actually drive the new backlight from its own power supply. I really had no idea if the current budget was there in the instrument, as there weren't enough details in the service manual to know. So I had to just lash it together to try. The boost converter was soldered into the 6 VDC and GND terminals on the J9 connector on the power supply board, and then power was applied to check for magic smoke. Nope, success! BTW, if you are replicating this test, be sure to plug all of the modules together, as the instrument won't power up unless all of the cables are connected.

IMG_20160504_140029

Now the job was to stuff the boost converter, trimmer pot, and LED driver module into the existing chassis so that it was secure and safe. The modules were test fitted into spaces where they looked like they would conveniently fit, and then Kapton tape was generously laid down on the chassis to give them a safe mounting point.

IMG_20160504_144309

IMG_20160504_153326

Fortunately, both of the modules were small enough to fit quite nicely in existing space, and both were single-sided boards, which meant that they could sit flush against the Kapton tape easily. The modules and pot were secured in place using more of that epoxy (although hot glue would have probably also worked well).

IMG_20160504_153819

The leads to the LED strip were routed back through the hole in chassis where the old CCFL leads went, and easily were able to reach the new LED driver module. After that, it was a simple matter to reassemble the instrument and power it on for a final smoke check.

IMG_20160504_155414

It works!

Although not the most skillful of hacks, it's always quite satisfying to recover something of value from the scrap heap with a handful of parts (about $15 worth in this particular case). I think the new LED backlight is actually brighter than the old CCFL backlight, but it has been a while since I've seen it with the original backlight, so that's a pretty poor subjective observation on my part.

One small warning here: I have only done rudimentary checks to see what effect the DC-DC boost converter would have on the measurements from the scope. I don't see any obvious hash from the switching power supply on the most sensitive vertical setting, but it's possible that the this might introduce some low-level unwanted spurious into the instrument, which perhaps may be visible when using the FFT function. Caveat emptor. You have been warned.

So for those of you with older instruments with busted CCFL backlights, I would highly suggest that you can retrofit a new LED backlight if you have some moderate electronics skills. There's nothing particularly magical here. The biggest concern is whether you can pull enough current from the existing DC power supply, but I imagine most instruments have power supplies that are designed to easily give up enough extra current to power a small LED strip without and difficulty. And if you have an instrument with 12 to 24 VDC already available, you can skip the boost converter that I had to use and not even have to worry about that. Give it a try and give some old junk new life!

Nerd Famous

It's nice to see we hams, who I think suffer from a bit of an image as throwbacks in the larger maker community, get some recognition for the good stuff we've accomplished. Today on Hackaday, a nice article about Manhattan and Ugly construction was posted, with ample coverage given to the fact that a lot of the best exemplars of these techniques come from the world of amateur radio builders. I'm not certain about how others feel on this topic, but it seems to me that Hackaday is one of the preeminent blogs relating to our hobby, so I get quite excited when we get repped there.

hackaday.com-2016-05-04-getting-ugly-dead-bugs-and-going-to-manhattan-_2

Featured in this article are two names well-known in our circles, and guys that I'm proud to call my friends (although I have never personally met either in real life yet!). Todd VE7BPO, is renowned for his rigorous empirical work in circuit design, as well as his beautiful Ugly circuit creations. They feature one of his designs near the top of the article.

hackaday.com-2016-05-04-getting-ugly-dead-bugs-and-going-to-manhattan-_105

The other is Dave AA7EE, who is probably familiar to almost every reader, unless you just crawled out from living under a rock for the last decade. It's not difficult to see why they chose Dave's work for to illustrate Manhattan construction, as his is some of the best out there. Period. Also unsurprisingly, this is not the first time that Dave's creations have made it to Hackaday.

Well done, gentlemen! Way to show the maker world at large that we've got relevant skills for the 21st century hacker community!



Wideband Transmission #8

Another 10 mW WSPR Beacon

I enjoy writing up my projects, but it's much better to get feedback to see that someone was actually able to take my writing and successfully duplicate my project. Via the Etherkit Twitter account, I received this from Tom Hall, AK2B regarding my last posted project:

Awesome work! Tom has been a great supporter of Etherkit from the beginning and I'd like to thank him for sharing his neat creations with the rest of us. It's wonderful to see such a minimalist design perform so well!

More Coding Resources for Fun

I haven't had a ton of free time here, but I do get snippets of time occasionally where I can sit with my notebook PC for a bit and mess around. As mentioned in some recent posts, I've been revisiting coding for fun, and I've stumbled upon quite a bit of new resources that are new to me and that I thought would be good to share.

The first one I'd like to mention is called Scratchapixel. I was curious about the mathematical methods behind 3D rendering, and some searching brought me to this exhaustive tutorial site. It's not 100% complete yet, but most of the fundamentals of 3D graphics are already well-explained there. A fantastic resource if you are curious about the first principles of 3D rendering like me.

A related site is called Shadertoy. Not by the same people, but also related to the topic of learning 3D programming. Shadertoy is a web application that lets you play with shaders in C++ inside a web IDE that can be updated on-the-fly. It takes a bit of CPU and graphics horsepower to run comfortably, but if you've got the capacity, it's worth browsing the demos on the site just to see the cool stuff you can create with it. This tool was created by Íñigo Quílez, who also has a really cool home page with lots of tutorials and whitepapers. If you like demoscene stuff, then definitely check it out.

Another neat find that I only recently discovered goes by the name of Rosetta Code. It bills itself as a programming chrestomathy site, which basically means that it's a way to learn how programming languages are related in a comparative way. There is a large directory of different programming tasks, and each task page lists ways to implement a solution in a wide variety of languages. It's a wiki, so not every page has every language implementation, but there's obviously a ton of work put into the site, and most tasks have implementation in the major languages. Really fascinating and useful at the same time.

Finally, there's The Nature of Code. This site hosts a free e-book download of the content, and provides a link to purchase a dead tree version if you wish. Here's how the website describes the book:

How can we capture the unpredictable evolutionary and emergent properties of nature in software? How can understanding the mathematical principles behind our physical world help us to create digital worlds? This book focuses on the programming strategies and techniques behind computer simulations of natural systems using Processing.

That sounds right up my alley. I haven't read the book yet, but I have skimmed it a bit, and it looks like the kind of things that I love: non-linear systems, physics simulations, fractals, and the like. When things settle down here a bit, I may tackle the book and re-write the sample code into Python. That would give me some more Python practice and force me to really think about the algorithms behind the text, not just blindly copying, pasting, and executing the scripts.

Let me know in the comments if you found any of these links useful or fascinating, or better yet if you know of other links in the same vein.

New Miles-Per-Watt Record Opportunity?

If you regularly follow science news, you may have heard of the Breakthrough Starshot initiative. In short, this is a study to create pathfinding technology that would allow the eventual launch of micro-lightsails with tiny mass to the Alpha Centauri system at a significant velocity (0.2c!) with a ground-based laser array. It's probably a serious effort, as it is being privately funded to the tune of a whopping $100,000,000. No doubt, an extremely audacious undertaking.

Sounds interesting, but what does this have to do with radio? Well, obviously there's the issue of how you can get a usable signal back to Earth across a distance of 4-and-a-half lightyears from a craft that masses in 10s of grams. I was wondering about that exact engineering challenge when I came across this article in my feed reader today. It turns out that someone has studied how one might use the Sun as a gravitational lens for lightwave communication across interstellar distances. Claudio Maccone, an Italian physicist, has run an analysis and has determined that putting a receiver at distance of at least 550 AU from Sol will give the desired lensing effect for optical communications.

Speaking before Maccone at the Breakthrough Discuss meeting, Slava Turyshev (Caltech) pointed out that the gain for optical radiation through a FOCAL mission is 1011, a gain that oscillates but increases as you go further from the lens. This gives us the opportunity to consider multi-pixel imaging of exoplanets before we ever send missions to them.

That's kind of amazing. Maccone calculates that the bit error rate of optical communication from at any significant distance from Sol quickly degrades to around 0.5. However, by using the Sun as a lens, the BER stays at 0 out to a distance of 9 LY. Here is a graph of the effect of standard comms and those enhanced by using the Sun as a gravitational lens, as calculated by Maccone:

fig024

What's really crazy is this next paragraph:

But as Maccone told the crowd at Stanford, we do much better still if we set up a bridge with not one but two FOCAL missions. Put one at the gravitational lens of the Sun, the other at the lens of the other star. At this point, things get wild. The minimum transmitted power drops to less than 10-4 watts. You’re reading that right — one-tenth of a milliwatt is enough to create error-free communications between the Sun and Alpha Centauri through two FOCAL antennas. Maccone’s paper assumes two 12-meter FOCAL antennas. StarShot envisions using its somewhat smaller sail as the antenna, a goal given impetus by these numbers.

So that would have to rate as the ultimate QRP DX, eh? I'm not sure how realistic any of this is, but I'm pretty sure the physics are well-established by now. Kind of makes the Elser-Mathes Cup look like small potatoes.



SOTA After Action Report - Sheridan Peak

Thanks to the efforts of Etienne Scott, K7ATN, we who live in the Pacific Northwest have a couple of nice SOTA summit-to-summit activity days each year. One that happens in early spring and if I remember correctly the other which occurs later in the summer. I participated in the spring S2S Party two years ago, but haven't had a SOTA activation since.

As mentioned in a previous post, things have been kind of crazy here lately, and Jennifer has been encouraging me to get out to do something I enjoy, so I decided to take this Saturday to participate in the S2S Party. I was considering Bald Peak, which is just on the outskirts of the Beaverton-Hillsboro area, and makes for a quick and easy trip, but by the time that I went to Sotawatch to claim it, I noticed that K7ATN had already done so. Thanks to SOTA Maps, I was able to easily browse some other peaks relatively close, and settled on Sheridan Peak, especially since a previous trip report tagged it as a fairly easy drive and hike.

I needed a travelling companion, so I asked my 5-year-old son Noah if he wanted to go, and he eagerly agreed. I wasn't sure if that enthusiasm would hold up during the trip, but at least because of the short hike to the summit, it would be easy to bail out if necessary. So we departed the house at around 9 AM, stopped by McDonalds for a light breakfast and a large coffee for me, then took the backroads of Washington and Yamhill Counties out to Sheridan Peak.

IMG_20160423_084924

The drive was uneventful, other than my phone's GPS getting a bit lost at the very end of the trip. However, the driving directions from the two previous write-ups of this peak on pnwsota.org were great and got me right to the parking lot. Actually, the gate to the parking lot was closed, but that was OK because there is a nice big turnout on the road immediately below it, so we just parked there and walked around the closed gate.

IMG_20160423_105332

IMG_20160423_105406

The hike up to the summit was quite easy, and Noah did well for one of his first actual hikes. Unsurprisingly for a peak in the Oregon Coast Range, the weather was damp and showery. Although we didn't have much of a view from the top due to the forest, one big advantage of that was the canopy over our heads providing a bit of a break from the rain.

IMG_20160423_110015

Fortunately, I was prepared for the rain, and I quickly erected a tarp shelter for us to use to take cover from the elements. It was actually fairly cozy under the shelter, as another advantage of the tree cover was that it was acting as a nice wind break from the usual chilly blast you get on a peak.

IMG_20160423_114820

I don't currently own any HF portable gear, but thanks to the generosity of W8NF, I was able to borrow a Yaesu FT-817 and Elecraft T1 tuner. A few days prior to the activation, I cut a random wire and counterpoise that would at least work on 40 and 20 meters, and tested it in my backyard. That turned out to be a good thing, as I was able to get my wire in the tree and get the 817 QRV with no problems at all. I also brought along my Baofeng UV-5R with rubber duck/tiger tail combo for 2 meter FM ops, with the 817 as the designated backup if that didn't work.

At the designated time of noon local, I heard K7ATN full quieting on 2 meters (which wasn't a huge shock, as his peak was only about 20 miles away from mine). There wasn't a huge turnout for this activity day like there was a few years ago when I did it on Cooper Mountain, but I did manage to make four S2S QSOs on 2 meter FM with the UV-5R in order to officially activate the peak. Woo! After that, I switched to 40 meters LSB on the 817 and made a couple of S2S QSOs with stations that I had already talked to on 2 meters and one with a local chaser. Finally, I had K7ATN spot me on 20 meters and managed to squeak out a couple more SSB QRP QSOs, both with stations in Arizona. By then, Noah was getting a bit cold and wanted to get going, but I was pretty happy with the results. From the sounds of things on 2 meters, a few of the other activators had some pretty crummy weather conditions to deal with, especially NS7P on Mary's Peak.

IMG_20160423_130340

So after about an hour on the peak, Noah and I packed everything up and headed back down the half mile or so to the pickup. I was very proud of Noah, as he did great for a 5-year-old; never really complaining and obviously really enjoying being out in nature, plus I think he liked the radio activity as well.

I'm really happy to have made this activation, especially since I was able to get Noah involved in both an activity out in nature plus radio fun! Thanks again to K7ATN for all of the hard work that you put into the PNW SOTA community and the rest of the activators for getting out there in this wet spring Oregon day. Stay tuned for hopefully one or two more SOTA activations this year, hopefully with more family members coming along on future trips.

Edit: Here's a recap of the event from K7ATN.

200,000 Miles Per Watt

If you wouldn't mind, I would like to draw your attention to my latest post on the Etherkit App Notes blog. In it, I detail how to create a 10 milliwatt WSPR beacon using nothing more than the Etherkit Si5351A Breakout Board, an Internet-connected PC, and a low-pass filter. A simple project, but one that gives quite a bit of fun testing the ionosphere given the cost and complexity.

Selection_104

I don't want to take away from the post, so I will advise you to go there to read it, but the bottom line is that with about 10 mW, I was able to get a signal decoded over 2000 miles away. I remember reading the old exploits of the QRPp gang in books like QRP Power, where you had to be really dedicated, organized, and good at decoding CW in the worst conditions. Now, we have the luxury of a mode like WSPR, which lets us do milliwatt propagation experiments without breaking a sweat.

One idle thought I had about this is whether it would be feasible to put this transmitter on the 13 MHz HiFER band (check out Dave AA7EE's excellent treatment on the matter) and whether that would be something that would be fun and useful for schoolkids to experiment with. Of course, it's technically feasible, but I would want to be sure that 1) it's legal and 2) there would be interest in doing it. A single PCB could be made with one Si5351A output attenuated to around 4.6 mW and low-pass filtered for transmit, while another output could be used to drive a simple fixed-frequency receiver based on the SA612. Let me know what you think about this in the comments.

Si5351A Breakout Board TCXO Upgrade

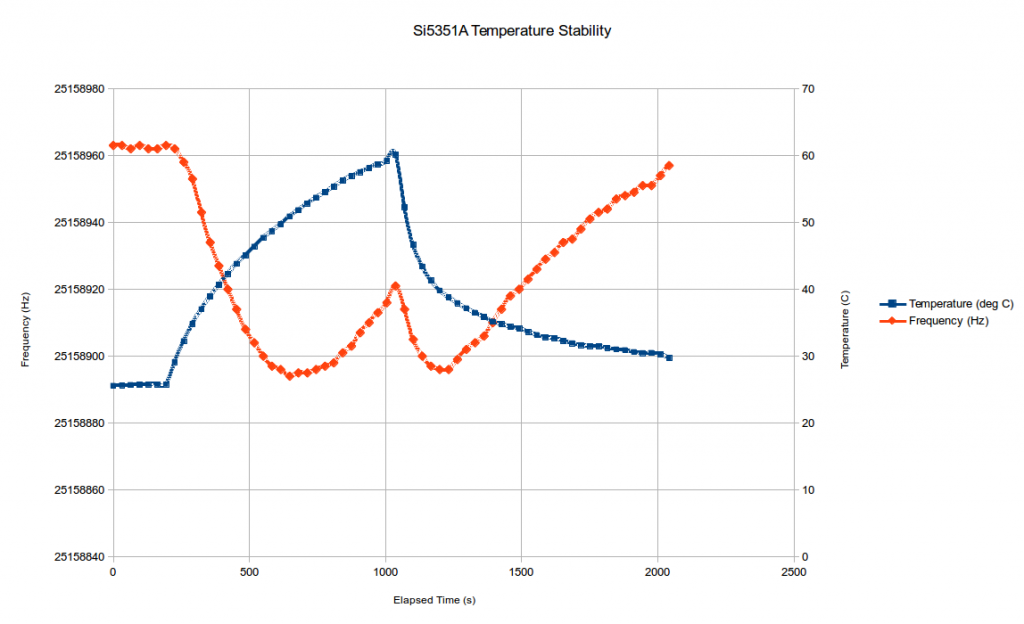

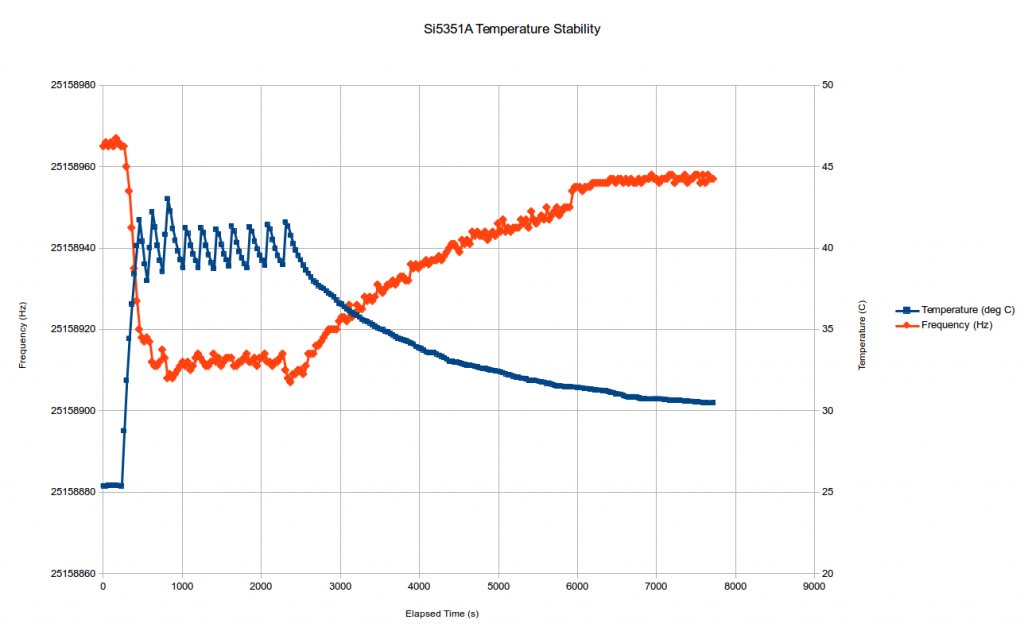

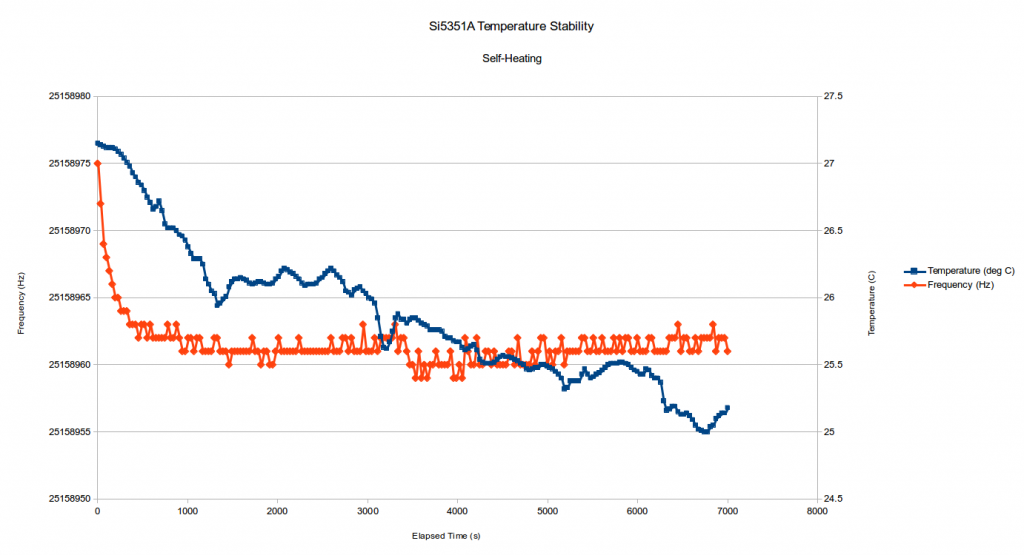

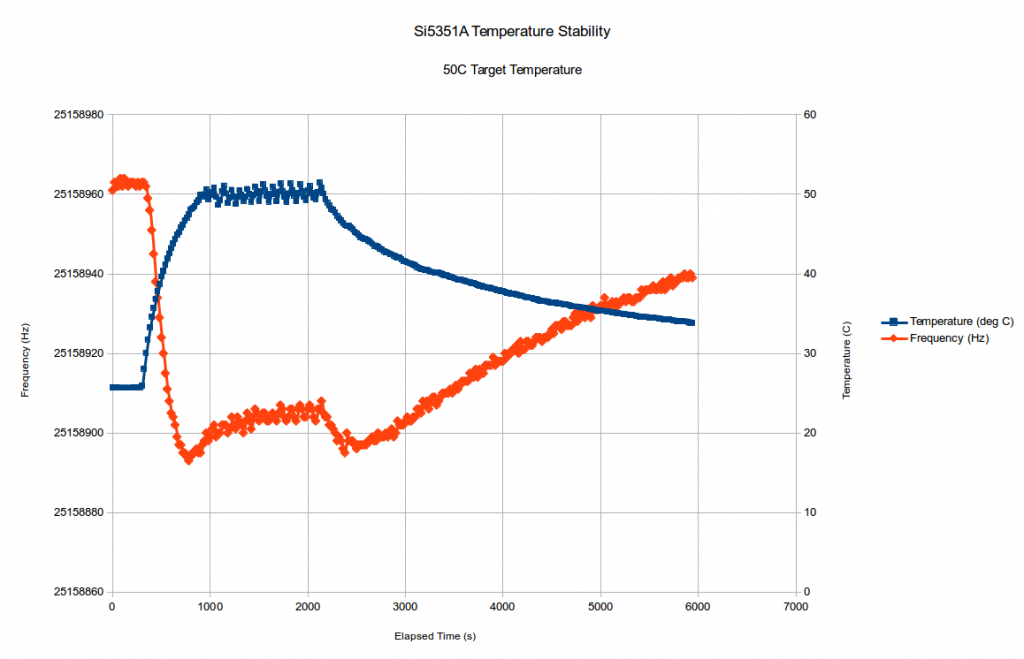

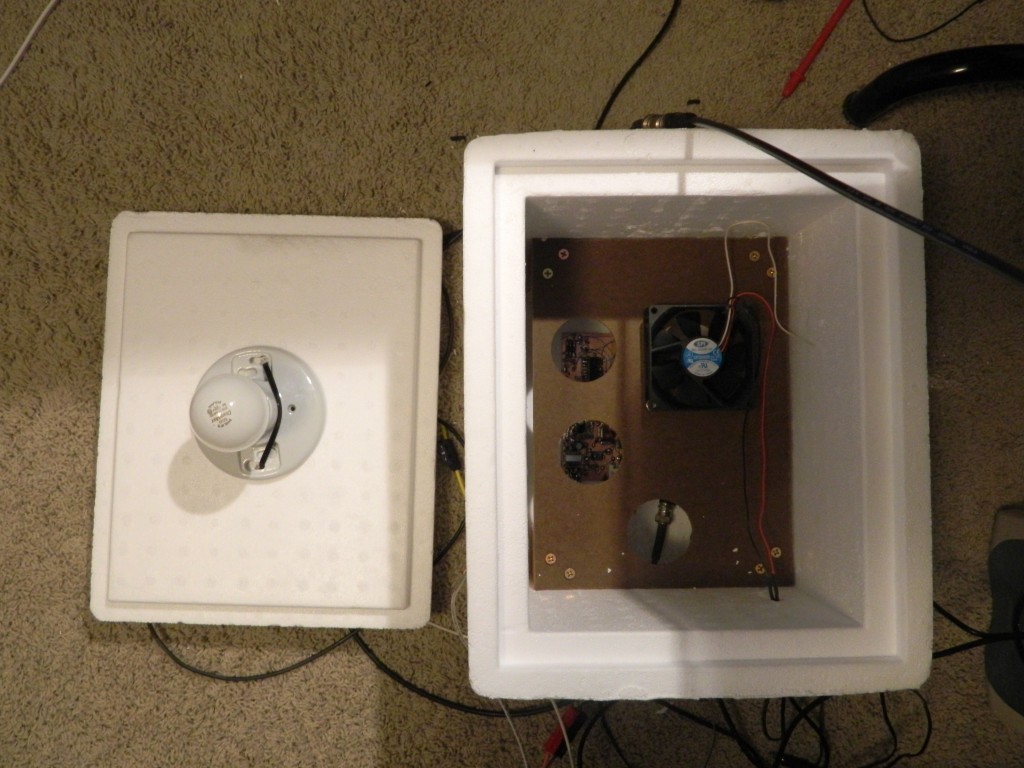

I'm pleased to announce an upgrade to the Etherkit Si5351A Breakout Board with TCXO reference oscillator. In boards manufactured previous to today (and the ones kitted in the initial crowdfunded initiative), the TCXO used was a Fox FOX924B-25.000. It worked well and did the job it was supposed to, but has one flaw in certain situations. The compensation loop in this particular TCXO has relatively wide frequency adjustment steps that can become obvious when using the Si5351A Breakout Board in a very narrow band mode such as QRSS. Here is a screen capture from Argo showing the behavior of the Si5351A Breakout Board with the Fox TCXO when outputting a carrier on 28 MHz, from a cold start.

Fox FOX925B-25.000
Fox FOX925B-25.000

As you can see, as the TCXO is stabilizing to operating temperature, the compensation circuit adjusts the frequency in relative course steps of around 3 Hz or so. Once the TCXO is warmed up, it jumps around less often, but still does occasionally have to frequency correct, and does so in a jump of similar size. This TCXO is still fine for most other uses, such as a VFO for a SSB/CW radio, but doesn't work so great for the MEPT modes, especially on the upper frequency range of the Si5351.

In the course of developing OpenBeacon 2, I determined that I would need to find a more suitable TCXO to use with the Si5351. After trying about five different oscillators, I finally found a fantastic substitute, and it only costs a bit more than the Fox TCXO. The Abracon ASTX-H11-25.000MHZ-T comes in a smaller package than the Fox FOX924B-25.000, but it will still fit on the footprint for X1 on the Si5351A Breakout Board. Here you can see the same test as above run for the Abracon TCXO.

Abracon ASTX-H11-25.000M
Abracon ASTX-H11-25.000M

It seems to find a stable frequency very quickly, and more importantly you can see that the compensation loop seems much tighter, with frequency corrections coming much faster and in smaller increments. You can only barely see a bit of fuzz from the frequency corrections on this low-bandwidth plot. This is much, much better for the MEPT modes.

As of today, all of the Si5351A Breakout Boards with TCXO option sold in the Etherkit store will have the Abracon TCXO, and the price will stay the same at $15.

Wideband Transmission #7

More Musings about Etherkit's Future

As I mentioned in my previous post, we are still undergoing a stage of tremendous upheaval in our household. I won't really know how our new life will shake out quite yet, but I am certain that my time will be more restricted. I think I'll have a good grasp on the extent of this within a month or so. In the mean time, I've been thinking about Etherkit. It's a bit weird to air this out on the blog, but I think it would be good for others to hear my thoughts about this and have the chance to offer feedback.

The assumption is that I'm going to have less time to work on Etherkit (the only real question being how much less time), which means that if I do have enough time left to continue with the business I will need help by either outsourcing manufacturing or finding someone to bring on as a partner. If possible, I'd like to go that route, as I'm not really ready to see Etherkit fold up yet. This would also require more funding, so I would probably have to find a way to raise capital via the sale of equity, or perhaps I could crowdfund enough on a future product to keep things afloat.

Right now I have in the product pipeline OpenBeacon 2, which is perhaps 80% finished (most of the remaining work is in firmware), and a handful of small useful RF modules. On the drawing board I have a couple of QRP transceiver designs utilizing the Si5351 that would definitely fall into the category of cheap and cheerful, and would probably be a lot of fun to bring to market. Also, since OpenBeacon 2 is based on the Arduino Zero, I've been discovering the power of the Atmel SAMD series of ARM Cortex-M0+ microcontrollers. I'd love to develop a dev board derivative of the Arduino Zero using some of the SAMD line that have a bit less flash storage and consequently are a bit less expensive. I think hams (and other hackers) would really like such a device.

The other option is that due to time constraints I just cannot realistically continue Etherkit as an active business (at least regarding retail sales of physical stuff). If that happens, then I would still like to stay active in some way, under the restrictions in my available time. Perhaps writing may be a good choice, since that is quite portable and can be picked up and set aside a lot easier than designing electronics. Writing technical books, for a new blog that earns money somehow, or as a contract writer for an existing website are all possibilities. I've thought it might be nice to write about test and measurement for the ham's home lab.

Either way, I'm not done with the ham homebrew community. The open question is merely how much time I can still give. Let me know what you think about the above in the comments.

Back to the Shack

It's been a while since I've transmitted any RF on the amateur bands other than the testing that I've been conducting for OpenBeacon 2. Between how much time I've been putting into OpenBeacon 2 (and refining the Si5351 library), it's been very difficult to find the time to sit down to operate. On top of that, I honestly just haven't felt much of the operating mojo, so unsurprisingly I haven't even tried to make it a priority.

Generally, it's not great to force these things, but I'm getting to the point where I'm feeling a bit disconnected from amateur radio and that I really need to be QRV again in order to rebuild that connection. The ARRL Centennial in 2014 was a great operating year for me because it gave me a concrete and interesting goal to pursue.

W1AW WAS

So I figure that I need something similar to get me motivated again. A good goal perhaps would be to finally finish up basic DXCC from this QTH. As of right now, I stand at 75 confirmed entities in LoTW. It shouldn't be that difficult to get 25 more confirmations in LoTW by the end of the year, especially if I carve out a couple of weekends for contesting. I used to chase a lot of the big DXepditions as well, and that might be another good source to pick up a handful of ATNOs (assuming I pay whatever fee they charge for a prompt LoTW upload). I'd also like to actually get a successful HF SOTA activation or two under my belt, and this would be a good summer to do that.

The League

Speaking of the venerable institution, I let my membership lapse recently. Not really with the mind to do so, but given the rather significant dues increase, it was becoming a bit more difficult to justify the expense. Yeah, they are only asking $10 more per year, but I have to ask myself if I'm getting $50 of value every year.

I was honestly barely reading the QSTs that were arriving in the mail. However, the archives always have been one of the best features of the membership. I'm glad they do work with the FCC to represent our interests. Their lab does a good job of evaluating products. It feels that their organizational structure is a bit too ossified; a bit too hierarchical for my tastes. Getting feedback to the leadership seems difficult if you aren't already connected to leadership.

On the balance, I'm generally pro-ARRL, but I still don't know that I see the value of just forking over $50 annually. I understand why they needed to do a rate increase (although it probably would have been better to phase it in more gradually rather than a 20% hit all at once). I also understand the economics of why it would be difficult to offer a membership without QST, unless a paper QST was scrapped entirely. I would be curious to see how the rate increase ends up affecting their member numbers and their bottom line.
